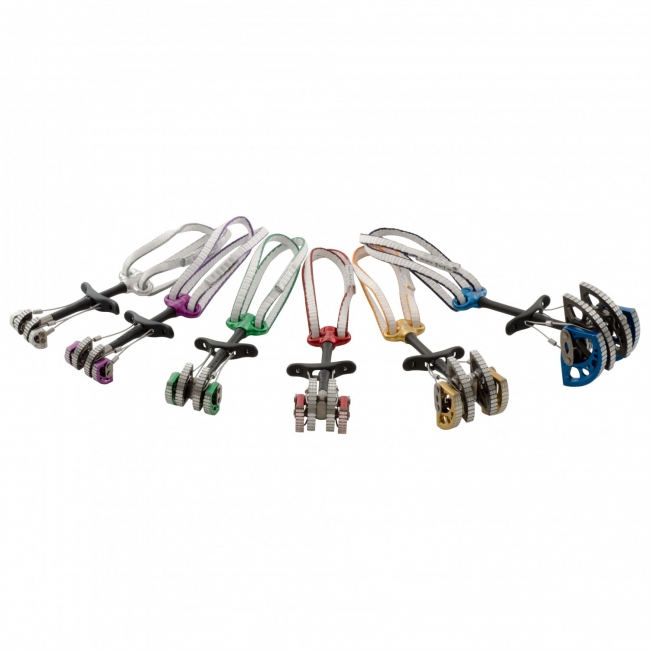

DMM Dragon Cams

DMM Dragon Cams

Item #DMM-0121
Details

A couple of years ago we decided to expand our cam range by producing a single stem design with a dual axle. A simple enough proposal you might think, but not if you want to make a cam that would stand head and shoulders above the rest. The main advantage of the single stem design with two axles is that it allows a greater range for each camming unit. We have kept Ray Jardin's original 13.75 degree constant camming angle, which gives the perfect balance between holding power and range.

The benefits of this increased range are obvious, but we knew we could push things to another level by focusing on other aspects of the design. By introducing the hot forging process for the cam lobes (in sizes 1 to 6) we were able to produce a highly sophisticated shape in A6082 alloy for the added bite, and make significant weight savings. We have used strong springs to make the cam sit more securely, it also means they are more resistant to being pulled out of slippy placements and the potential for 'walking' is reduced.

SPECS:

Range:

  • [00] 13.6 - 22.5 mm
  • [0] 16 - 26.7 mm
  • [1] 20 - 33 mm
  • [2] 24 - 41 mm
  • [3] 29 - 50 mm
  • [4] 38 - 64 mm
  • [5] 50 - 85 mm
  • [6] 68 - 114 mm

Strength:

  • [00] 9 kN
  • [0] 12 kN
  • [1, 2, 3, 4, 5, 6] 14 kN

Weight:

  • [00] 75 g
  • [0] 85 g
  • [1] 97 g
  • [2] 106 g
  • [3] 119 g
  • [4] 148 g
  • [5] 195 g
  • [6] 276 g
