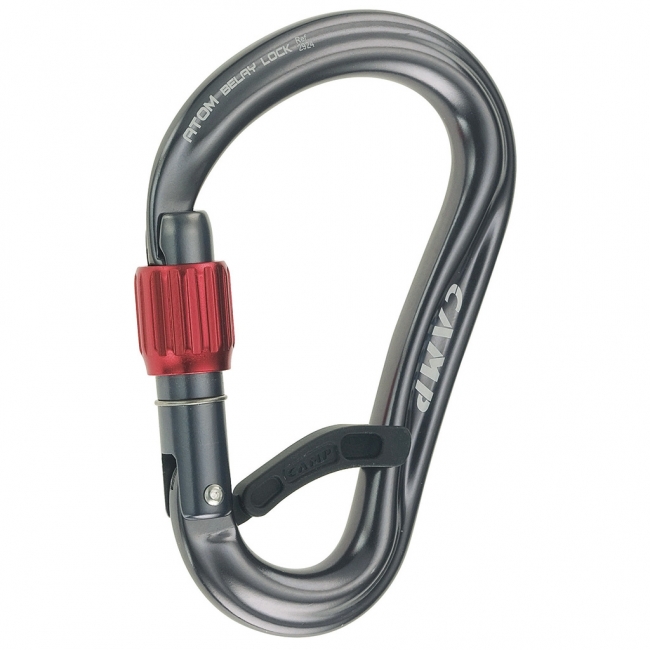

The Atom Belay Lock is a high-strength HMS carabiner designed for belaying and rappelling. The proprietary inner gate creates a captive eye to prevent rotations that can lead to cross-loading and the proprietary SphereLock nose combines with a large gate opening to make clipping ropes and webbing easy.

• High-strength HMS carabiner with a secure screw lock closure and a proprietary inner gate to prevent cross-loading
• New screw gate is lightweight and easy to handle
• Proprietary SphereLock nose make clipping ropes and webbing easy
• Laser etched marking to indicate if the lock is open or closed

TECH SPECS

• Height (mm): 120
• Width (mm): 78
• Gate Opening (mm): 22
• Major Axis (kN): 24
• Minor Axis (kN): 11
• Open Gate (kN): 8
• Lock Type: Screw Gate
• Material: Aluminum
• Weight: 85 g (3.0 oz)
• Standard(s): EN 362 B – EN 12275 H
